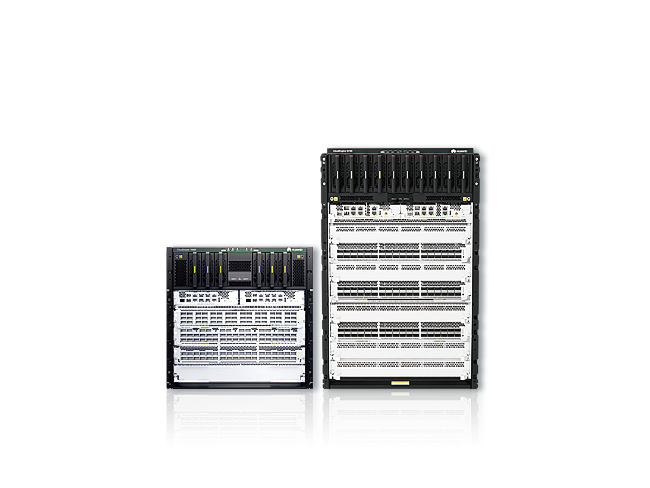

CloudEngine S16700 series switches
CloudEngine S16700 series switches
CloudEngine S16700 series switches are flagship core switches with ultra-high performance and are designed for high-quality 10Gbps campus networks. This series has ultra-fast forwarding capability of 14.4Tbit/s in a single time slot, unparalleled data exchange and massive terminal access capabilities. CloudEngine S16700 takes the lead in applying M-LAG (Multichassis Link Aggregation Group) technology in campus networks, achieving high reliability of 99.9999%. Other notable features include Virtual Extensible LAN (VXLAN), free mobility, Quality of Service (QoS), Internet Packet Protection Algorithm (iPCA), one-click service deployment and minute-level fault location. With these features, CloudEngine S16700 is an ideal choice for global customers to embrace the 400Gbit/s era of campus networks.
Technical specifications
型号CloudEngine S16700-4CloudEngine S16700-8
转发性能17760 Mpps35520 Mpps
交换容量28.8 Tbps57.6 Tbps
MPU 插槽22
服务卡插槽48
交换网板插槽6个(未来将扩大到9个)6个(未来将扩大到9个)
风扇插槽33
iPCA质量感知支持直接对业务报文标记以获得丢包数量和丢包率的实时统计
支持二三层网络网络级和设备级丢包数量和丢包率统计
VxLAN特性支持VxLAN二层网关、三层网关
支持集中式网关,分布式网关
支持BGP-EVPN
支持通过Netconf进行配置
可靠性支持LACP
支持VRRP、BFD for VRRP
支持 BFD for BGP/IS-IS/OSPF/静态路由
支持Eth-OAM 802.3ah和802.1ag
支持Smartlink
互操作性VBST基于VLAN生成树协议(和PVST/PVST+/RPVST 互通)
LNP 链路类型协商协议(和DTP相似功能)
VCMP VLAN集中管理协议(和VTP相似功能)
