Data storage
OceanStor data storage has been selected into the Gartner Primary Storage Leaders Quadrant for eight consecutive years.

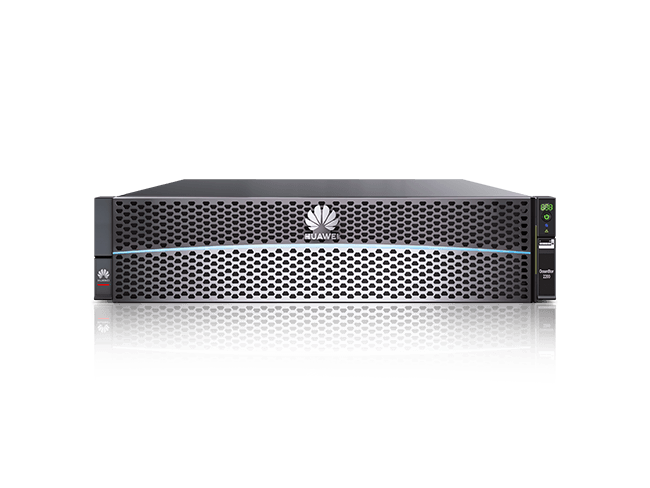

OceanStor 5110F/5210F/5310F/5510F/5610F/5810F V5 series
OceanStor 5110F/5210F/5310F/5510F/5610F/5810F V5 series
OceanStor 5110F/5210F/5310F/5510F/5610F/5810F V5 series intelligent all-flash storage is a mid-range intelligent all-flash storage system based on Huawei's self-developed multi-core processor, providing users with excellent data services. The storage operating system for cloud architecture, the powerful performance of flash memory optimization and intelligent management software have reached the industry-leading level in terms of functions, efficiency, reliability and intelligent operation and maintenance. It meets the data storage needs of various applications such as medium and large databases OLTP/OLAP and file sharing, and helps enterprises smoothly migrate their business to the cloud. It is widely used in government, finance, operators, manufacturing, education, medical and other industries.
Technical specifications
Model5110F V55210F V55310F V55510F V55610F V55810F V5
Control frame properties
ArchitectureAll flash
Delay<1ms
Storage processorMulti-core multi-processor
Maximum system cache256GB512GB2TB4TB8TB12TB
Maximum number of controllers8816161616
Supported storage protocolsFC、iSCSI、NFS、CIFS、HTTP、FTP
Front-end channel port type8/16/32Gbps FC、1/10/25Gbps Ethernet8/16/32Gbps FC、1/10/25/40/100Gbps Ethernet
Backend channel port typeSAS3.0NVMe over Fabric/SAS 3.0
Maximum number of hot-swappable I/O modules (per controller)223666
Hard drive typeSAS SSDNVMe SSD、SAS SSD
RAID support0,1,5,6,10,50
